● Product Parameters

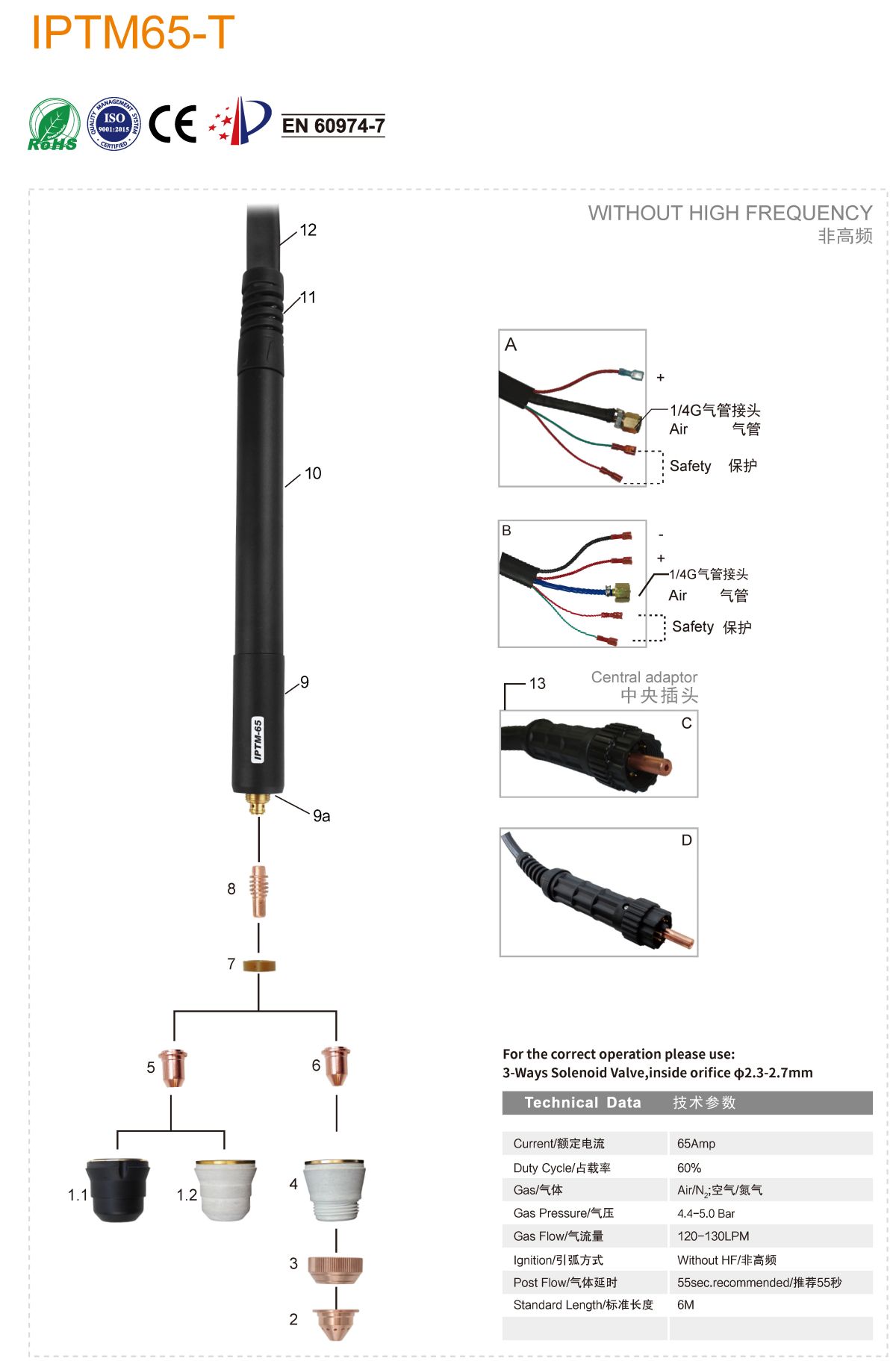

| Position | Code | Ref. | Description |
| 1 | Outside nozzle | ||
| 1.1 | KVS0661-03 | 60389 | Outside nozzle 6holes IPT60/bakelite |
| 1.2 | KVS1661-05 | Outside nozzle 6holes IPT60/Gray Glass fiber | |
| 2 | KSM0652 | Shield cap/IPXM62/IPXM82/machine | |
| 3 | KSM0658 | Shield cap/IPX62/IPX82 | |
| 4 | KVS0632-05 | Outside nozzle IPX62/gray glass fiber | |
| 5 | KVU0792-11-GW | Tip Φ1.1mm/65A/IPX62 | |
| 6 | Tip | ||
| 6.1 | KVU0792-09 | Tip Φ0.9mm/40A/IPX62 | |
| 6.2 | KVU0792-11 | Tip Φ1.1mm/60A/IPX62 | |
| 7 | KVF1601 | 60028 | Diffuser IPT20C-IPT60 |
| 8 | KVB1048-06 | Electrode/IPT40/IPX62 | |
| 9 | KVZ0724 | Plasma machine torch head IPTM45-T/IPTM65-T | |
| 9a | KFT0709 | 51620.6 | Oring Φ15XΦ18 IPT60 RED SIL |
| 10 | KGV0706 | Fiberglass position tube/PTM torch | |
| 11 | KHJ0931 | Cable suppor spring/big/TIG,PLASMA/black | |
| 12 | Cable assembely | ||
| 12.1 | KVN01106063-300 | Cable assembely/IPT60/IPX62/6M/2 wires/integrated | |
| 12.2 | KVN01106061-300 | Cable assembely/IPT60/IPX62/6M/2 wires/separated | |
| 12.3 | KVN01106060-300 | Cable assembely/IPT60/IPX62/6M/2 wires/centre adapter | |
| 12.4 | KVN1110606C-300 | Cable assembely/IPTM60/IPXM62/6M/coaxial cable/centre adapter | |
| 13 | KZX0078 | Central adaptor torch side Plasma 5 pins |
● Complete Torch
| Code | Ref. | Description | |
| IVT33171 | Plasma cutting torch IPTM65-T/6M/1/4G/integrated | ||
| IVT33172 | Plasma cutting torch IPTM65-T/6M/1/4G/separated | ||
| IVT33173 | Plasma cutting torch IPTM65-T/6M/center adapter | ||
| IVT33174 | Plasma cutting torch IPTM65-T/6M/coaxial cable/center adapter | ||
