● Product Parameters

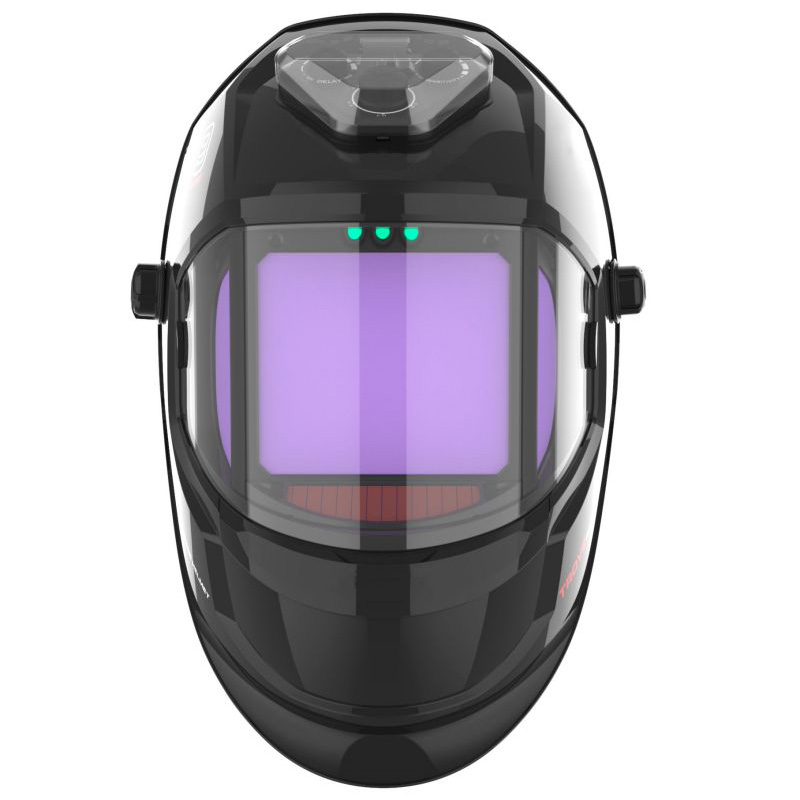

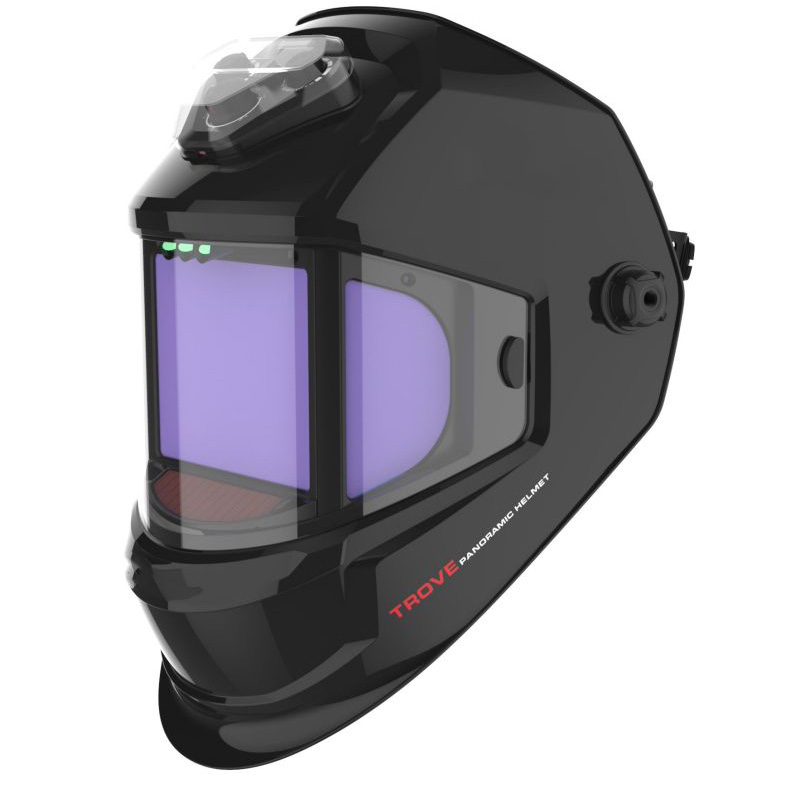

| MODEL | LY800G |
| Optical Class | 1/1/1/2; 1/1/1/3 |
| Cartridge Size | 153.5×120.5×42mm;161×182.5×105mm |
| Viewing Area | 109.5×97mm(4.31"×3.82"); 96×50mm(3.78"×1.97") |
| Light State | DIN3.5 |
| Dark State | DIN5～9/9～13; DIN11 |
| Shade Control | External & Stepless; No |
| Switching Time | 1/10000S±20%; 3/10000S±20% |
| Sensitivity Control | External & Stepless; No |
| Delay Time | 0.1S～0.8S |
| Power Supply | Li-battery&Solar |
| Rated Capacity Of Li-Battery | 300mAh Rechargeable |
| Replaceable Battery | No |
| Operating Temp. | -5℃～55℃ |
| Storing Temp. | -20℃～70℃ |
| Arc Sensor | 4; 2 |
| Low Amperage TIG Rated | ≥5amps |
| Helmet Material | PP or PA |
| UV/ IR Protection | DIN13 |
| Test | Yes |
| Low Battery | Yes |
| Grinding | Yes |
| Cuting | Yes |
| LED | Yes |
